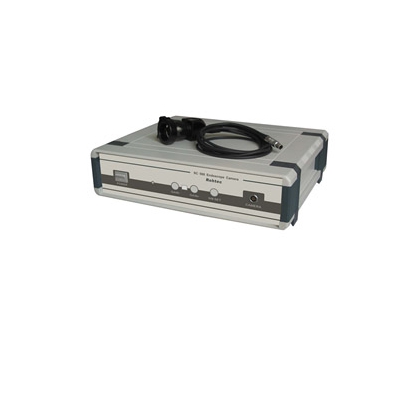

SC-560 ENDOSCOPE CAMERA
CCD: 1/3inch SONY Super HAD CCD
CCD Element:795(H) X 596(V)
Minimum Illumination：0.8 Lux
Resolution：520TVL
White Balance Mode： Push lock
White Balance Range：3200-10000°K
S/N Ratio： 60dB(max)
Video Output: Composite Video 1.0V p-p , 75 ohm
Adapter: F18,F20,F28,F32 select
Brightness adjust: 4 Level
CCU Dimension:360(W)*90(H)*300(D)mm
SC-610 ENDOSCOPE CAMERA
CCD: 1/3inch SONY Super HAD CCD
CCD Element: 795(H) X 596(V)
Minimum Illumination：0.8 Lux
Resolution：520TVL
White Balance Mode： Push lock
White Balance Range：3200-10000°K
Optical Interface: F18, F23, F27, F32 (Selectable)
S/N Ratio： 60dB(max)
Video Output: Composite Video 1.0V p-p , 75 ohm
Adapter: F18, F20, F28, F32 selectable
Brightness adjust: 100 Level
Color Differenct adjustment: Red 100 Level, Blue 100 Level
CCU Dimension: 360(W)*90(H)*300(D)mm
